Electric or Manual · Single Station

TDP-1.5 Tablet Press

The entry point into the motorized line — a compact single-punch press that runs on mains power or, when you only need a handful of tablets, by hand crank. Sized for R&D batches as small as 200g and for short production runs once a formulation is dialed in.

Compare Models
15 kN
Max Force
8mm
Max Tablet Diameter
5,400/hr
Max Output
55 kg
Net Weight
$1,095.00 USD / unit

Ships in 1–2 days · View cart & checkout

TDP-1.5 / Product FIG. 01
TDP-1.5 motorized tablet press, front three-quarter view with motor and control switches

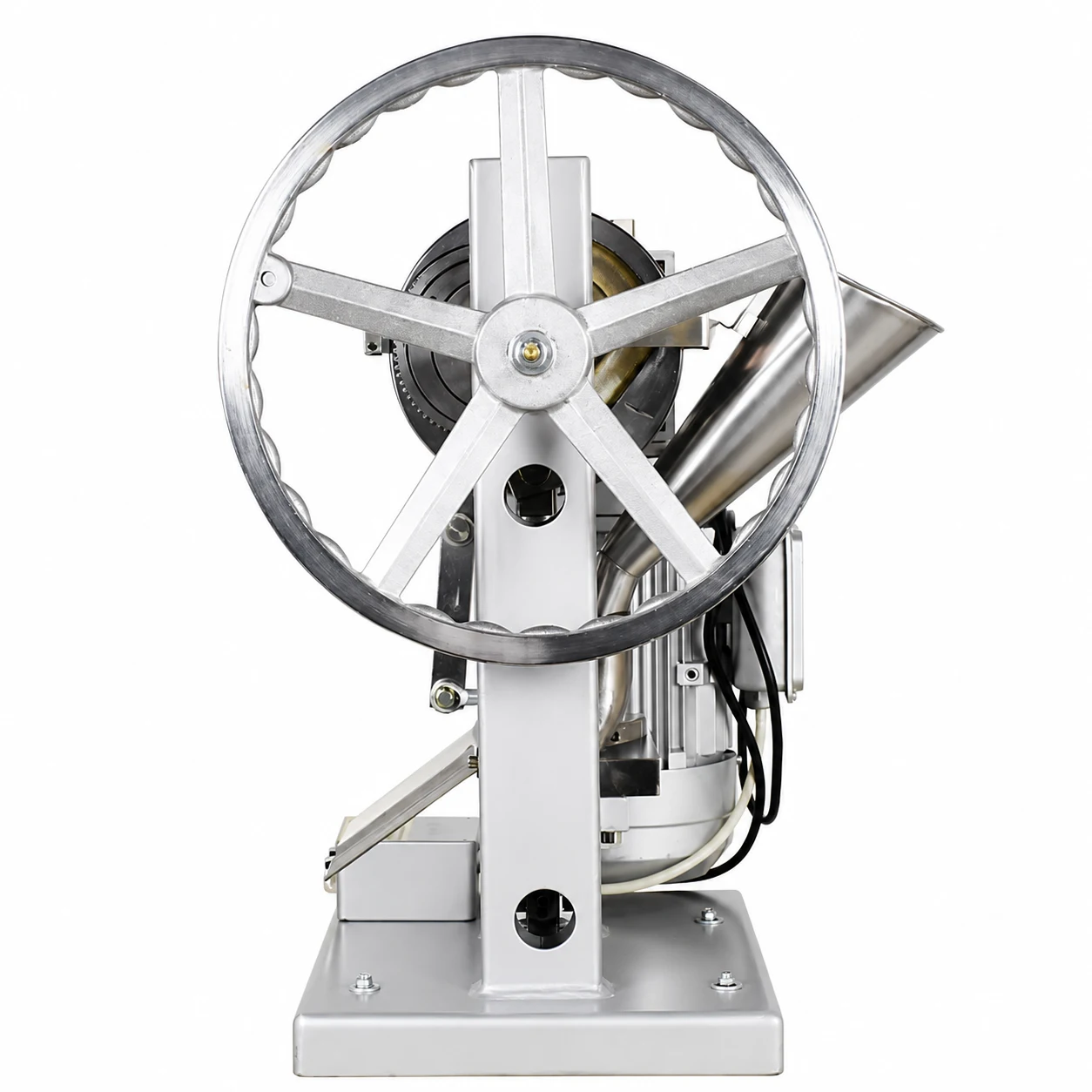

TDP-1.5 motorized tablet press, side view with flywheel

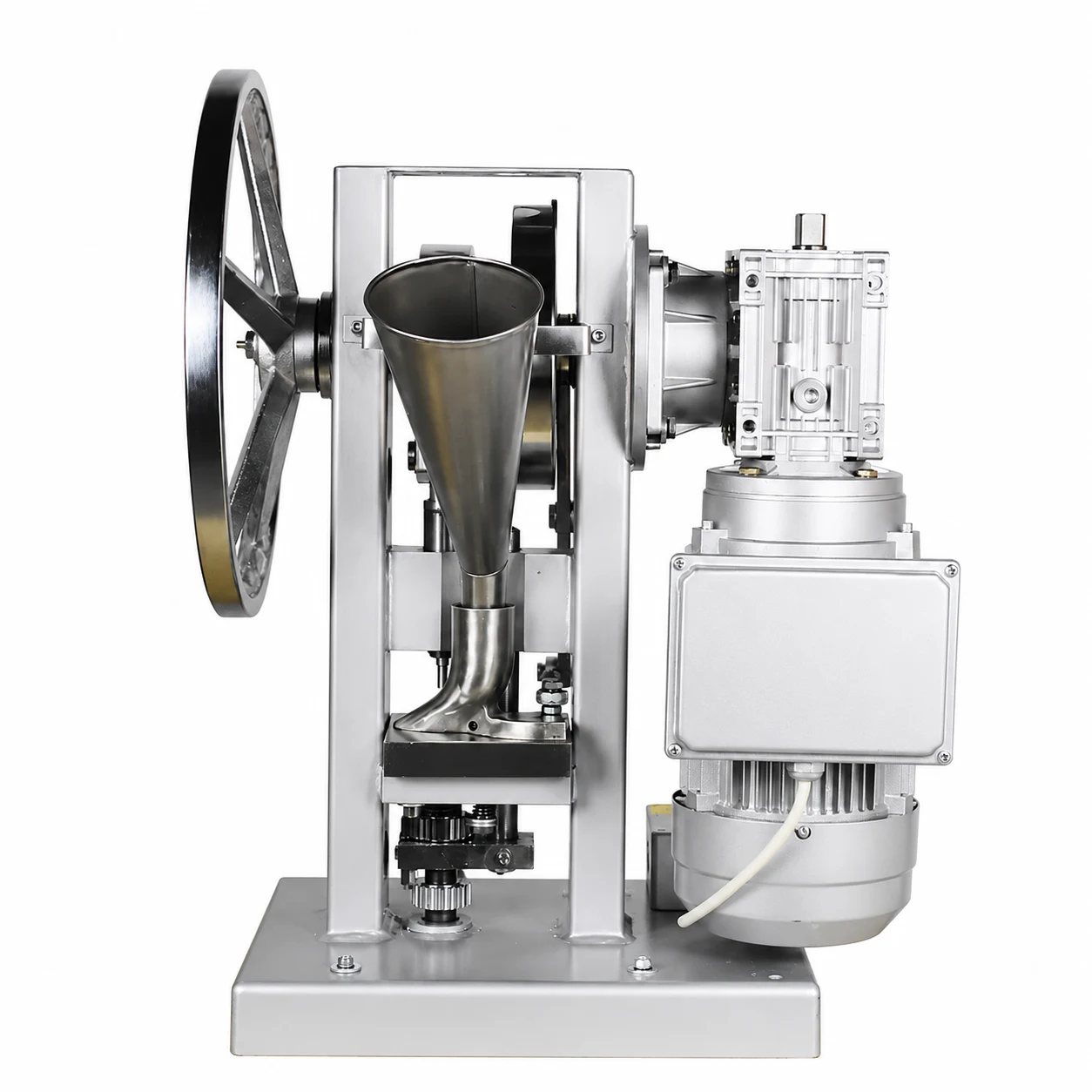

TDP-1.5 motorized tablet press, rear view showing gearbox and motor
Why This Model

Built for
its job.

01

Electric or Manual

Switch between mains power for volume and a hand crank for a handful of test tablets — one machine covers both ends of formulation work.

02

200g Minimum Batch

Low enough to run a real trial on an expensive or limited active ingredient without wasting most of it finding out whether the mix works.

03

Shape & Stamp Flexibility

Swap the mould to change tablet shape, and stamp a logo or identifying mark on the face — useful for keeping small trial batches distinguishable.

Full Specifications

Every
number.

Full manuals and dimensioned drawings are included with every unit and available before you buy.

SpecValue
Number of dies1
Max pressure15 kN
Max tablet diameter8 mm
Max fill depthup to 16 mm
Max tablet thickness6 mm
Max production capacityup to 5,400 tablets/hr
Number of filling stations1
Double-layer tabletsNo
Motor0.55–0.75 kW
Power supply110V or 220V, single phase
Height800 mm
Width400 mm
Depth700 mm
Net weight55–60 kg
Warranty12 months, parts (excludes tooling)
Questions

Frequently
asked.

What's the minimum batch size I can run?

As little as 200g of raw material, which is enough to press a small test batch without burning through an expensive or limited active ingredient.

Can I run it without electricity?

Yes — it also operates by hand crank, which is useful for pressing just a few tablets or for sites without reliable power.

How does it compare to the TDP-5?

The TDP-1.5 tops out at 15 kN and 8mm tablets; the TDP-5 goes up to 50 kN and 20mm. If your formulation or tablet size needs more force or a bigger tablet, start with the TDP-5 instead.

Can I change the tablet shape?

Yes, by swapping the mould. The press also supports stamping a logo, lettering, or numbering onto the tablet face.
